Mini $26.00 LCD Very Usable for EVF Project

So I tested some playback on the GH2 with this mini-lcd, but that wasn't the test I was hoping for when I first got this LCD. The Panasonic GH2 will only output in recording mode through the HDMI. It can only 'playback' through Composite. The Canon cameras can output from Composite, so I brought in the AV cables that are provided in the box. It's great to see that the LCD actually scales the input properly too. Something else that's pretty cool. When the Canon is displaying the Live View, it doesn't use the entire 3.5" LCD. Why is that cool? Because I threw on one of those magnetic frames for my LCDVF for 3" LCD's and it's just about a perfect fit over the displayed image.

DIY-EVF (3 of 6)DIY-EVF (4 of 6)

The tests with the Canon 60D are awesome, and much more than I expected from a sub $26.00 dollar LCD. It's definitely usuable for my DIY EVF ( Electronic View Finder ) Project. Might not be compared to other EVF's (coming) on the market, but for under $26.00 dollars, i'm not complaining. It does what I need it to do for now. My plan now is to mount a 1/4x20 Nut to the rear of the LCD and use a Friction Arm to position it wherever I want. [Update] Did it.

DIY-EVF

This should also work perfectly with my GoPro HD camera as well, since the GoPro lacks it's own LCD. Here's another cool little kicker, since you're all wondering how it's powered up. As I expected, it doesn't even require 12Volts to run. I attached it to a simple 9Volt battery. Yes 9 volt battery people, that's all it takes to power this bad boy up. One thing I was noticing though is that the exposure wasn't as good with the 9 Volt battery. I think even though it turns on, it's under powered and causes the display not to look as good as it can be.

DIY-EVF (1 of 6)

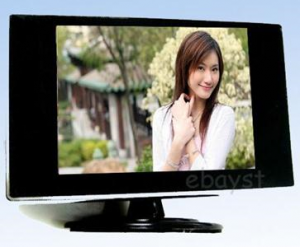

If you're searching for this mini monitor too, this is how the LCD looks (below). It's a bit confusing since resolution is listed differently depending on the auction, but I think they are all the same. It's a 3.5" LCD with Composite input. If you see one like this, it's probably it. More to come with these Mini-LCD's from Cheesycam for sure.....

3.5-mini-lcd
find-price-button Mini LCD Monitor with 960×480 Pixels







100 thoughts on “Mini $26.00 LCD Very Usable for EVF Project

  1. Julian

    yes i think it does because it works with my television and my computer too and i think this lcd is very similar to this..
    Thanks!

  2. julian

    hey, i got a question.
    i have a sony vx1000 camera and it has an av output. with this output i am able to connect it with an av cable to my television and watch some filmed stuff or get a live view. is it possible to connect my camera with this cable to such a mini lcd and get a live-view? it would be very cool if this worked because my viewfinder ribbon cae is broken and i need a view to check focus and other settings.

  3. Emm

    Post author

    @patrick - It may not have enough voltage. These are designed to use 12V, and the LP-E6 is less.

  4. Emm

    Post author

    @Lukas - Try a fresh 9V battery (good one not cheap one). If it still doesn't work, try the recommended 12V through another battery.

  5. Jake

    I've been thinking of doing this with a replacement 5D LCD monitor so should be accurate for exposure and colour:

    http://www.ebay.co.uk/itm/Canon-EOS-5D-SLR-LCD-DISPLAY-SCREEN-MONTIOR-NEW-PART-/330509191592?pt=Digital_Camera_Accessories&hash=item4cf3e209a8#ht_5180wt_1180

    This with a cheap optical view finder and micro magic arm I imagine would be pretty good but I do not have to knowledge for wiring from that connector to a Mini HDMI or a video cable

    Any ideas?

  6. Thanh

    I found this 4.3 monitor to be super good. I just got it in today and test it out. I much brighter and sharper than my lilliput 668 through composite. it listed as 800H x 480V i was skeptical as first that false advertise but i'm happy for now. after 3 hours of playing around it did have the screen of death on me(white) so what i did was pull the power and plug it back in and i'm back to business. I'm currently run the lcd non stop now to see how it with stand. I'll be back and posting my test result soon.

    This is the only LCD monitor that i found that have 800x480 http://cgi.ebay.com/ebaymotors/P146-New-4-3-Digital-TFT-LCD-Color-Car-Monitor-/270785993940?pt=UK_Audio_TV_Electronics_In_Car_Entertainment_GPS_In_Car_Audio_Players_PP&hash=item3f0c1a5cd4#ht_3191wt_1017

  7. Richard

    hey emm. ive looked into these as a lightweight monitor to attach to my flycam nano. do you know of any clamps that could mount it on the lower base?

  8. imgpro615

    [update] ...mine came in a couple days before i shot a comic/anime convention in Memphis...it is styled a bit differently but actually did the job just as well...i used it with and without my carryspeed loupe...positioning of the stickyframe is key cause it CAN cover some info in the fringes...but for the savings...whoop ti dew!! Emm, you are brilliant...thanx for the tip!

  9. imgpro615

    this lil bit of awesomeness-ness is on the post-'lil mama' birthday[-get back to gettin gear] list maybe a couple

  10. Emm

    Post author

    @Andrius Lithuania - No HDMI, but I believe the 7D still have AV out through component.

  11. Andrius Lithuania

    Hi,

    Can I use it with canon 7D? It is possible to conect with HDMI? Thanks

  12. Pingback:

  13. Alex

    Ok, so I got my new monitor and it is working great! 😀
    It is running on 12v (8xAA) This one is way more robust than my previous one :)

  14. Jason

    I hooked mine up to one of those car battery jump start deals that was fully charged. I'd think it could draw however much power it needed from that?

  15. Alex

    Hmm, tried with a 15volt almost melted my wires (it got really hot!) :S
    I now realize it was a 1A (1000mA), maybe a bit too much 😛
    However I will shortly recieve another monitor, higher resolution and bigger screen (4,3") which looks a bit more robust with a powersupply matching SKs criteria 😉

  16. sk

    it's all about the voltage! if the screen fades to white, the battery is at the end of its lifespan. 9v is just too low. that is also the reason why some of you had issues with stripes and flickering. if you can get a good 12v power supply with around 500mA you will be very happy.
    I had the same issues. since I changed the battery to the power supply, the picture is just perfect. especially when you were pissed at the beginning. Finally I'm very impressed by this little monitor.
    Thanks cheesy for the tip!

  17. Alex

    Tested my screen on the GoPro again and this time it didnt -.-
    It looks like the screen or some cables have been damaged since I get a picture covered by white horizontal stripes.

    But I got the white screen as well, but if I play with the wires on the battery poles it shows at least a halfbroken image :S

  18. albert

    i think the problem is that the monitor is ment to use 12v not 9, im curently using a RC car battery taped to the side of mine and it works perfectly, its almost like a grip from a camera

  19. Jason

    I tried my 7D and a GoPro and get white screen only no matter what. Plug either one into my 23" LCD and they work just fine.

  20. Kevin

    Just got mine, it works with wall adapter, but 9v battery is just not enough, it blinks on and off with the battery.

    I would not recomend this, but I plugged 2 9v together (18v) and it worked, I was lucky I didnt blow it up.
    I'll be sticking with AC power for it untill I can think of a small battery solution.

  21. I'm using a 12v adapter power supply that you plug into the wall.
    http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=140489934903&ssPageName=STRK:MEWNX:IT
    I don't have any 9v's around. It seems a lot of people (in the comments section) are having a similar issue.
    humph. i got all jazzed about it too.

    but on a happier note
    I bought one of these clamps
    http://cgi.ebay.com/C-Clip-Clamp-Holder-Mount-Studio-Backdrop-Camera-/120640057121?pt=LH_DefaultDomain_0&hash=item1c16b52f21#ht_2445wt_1092
    and a cheap ballhead. tightened it onto my express35 shoulder rig and put a zoom h1 on it. WORKS GREAT!!!

  22. Alex

    I have tried a 9v battery as well as 8x1,5v AA diy powerpack 😉 Strange it worked so well on the GoPro which is at my friends house, when I came home and tried with the t2i the screen is just a mess :S
    The menu loses all its letters after 2 sec as well :S

  23. Emm

    Post author

    @J Hanna - Only tried on my 60D which is the same cables for T2i. What power source are you using?

  24. yep. tried it with every piece of tech in my house with a video source out. white screen.
    A friend of mine has a 60d. When she gets back into town I'm going to try it with her camera.
    This many people can't just be doing something....wrong....our monitors must be bad.

    Emm,
    When you plug your 3.5 inch monitor into your t2i does it work?

  25. Alex

    same problem here, but it worked perfectly fine with my gopro :S
    On my 550d it blinked white, if I messed about with the cables around the batterypoles I saw zebra stripes, dark stripes with picture and white with only white :S
    What can be wrong?

  26. Same issue. Plugged it into the camera, plugged it into power source....powers up and turns white.
    Just a bum product...Some monitors work, some don't.
    I just contacted the seller to return mine.
    I was all pumped about it but now I think I'll try a 7 inch portable tv... should work the same... maybe?

  27. I read somewhere on the listings that you need a video source to power it up, did you trying plugging it in to both a power source and a video source?

    -Hunter

  28. Jason

    Seller wants me to ship mine back too. I can't imagine we're doing something wrong. I gave it 12v, 9v, video on either input, pushed the buttons... the thing is just DOA.

  29. John

    still not powering up. I emailed the seller and he told me it only works with a car's back-up camera..... i think i might just give up on this without even bothering to ship it back.

    Anyone know how to power this up? some photos or videos of how to do it will be greatly appreciated by many on here, thanks! :)

  30. Jason

    I just got mine--it's DOA too. Won't power up no matter what I do with it. Tried a 9V battery, tried a 12V battery, tried a 12V wall adapter. Also it didn't match the description, this one has a Menu, +, - buttons on the back, where the pictures show Contrast, Brightness, U/D L/R. I'll post if they come back with any kind of solution, but my guess is they'll want me to ship it back and I'm not going to throw any more money after this.

  31. John

    I did what you show in the photo, connecting the black thin wire to 9V battery but the thing still doesn't power up. I will contact the seller and see what's up... Thanks, Emm!

  32. albert

    i tried it out on my t2i and its okay, i mean it not great but you can tell whats in focus and whats not, you will need a hoodman lcd viewfinder type thing if you going to atempt it but her its only $26 you can really loose
